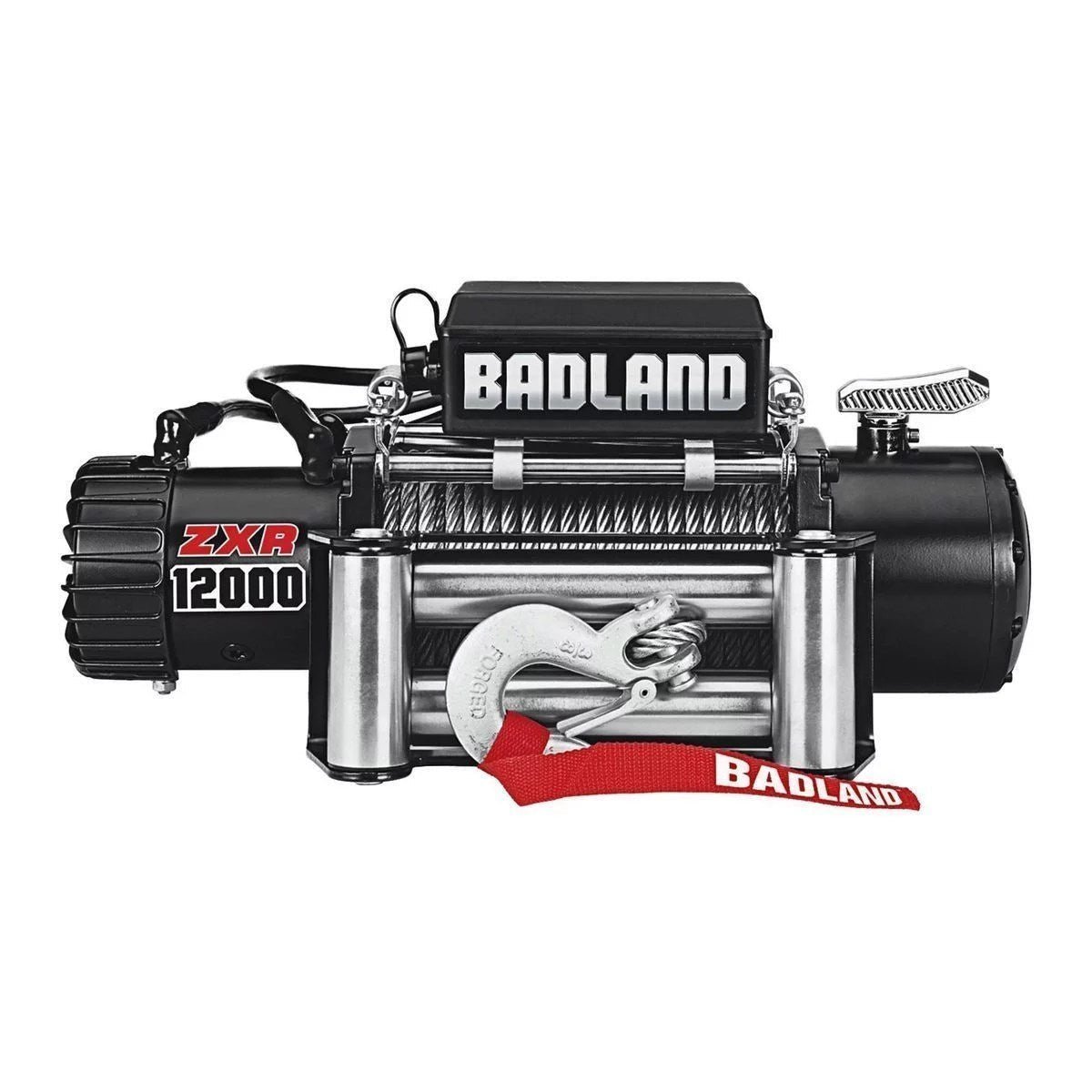

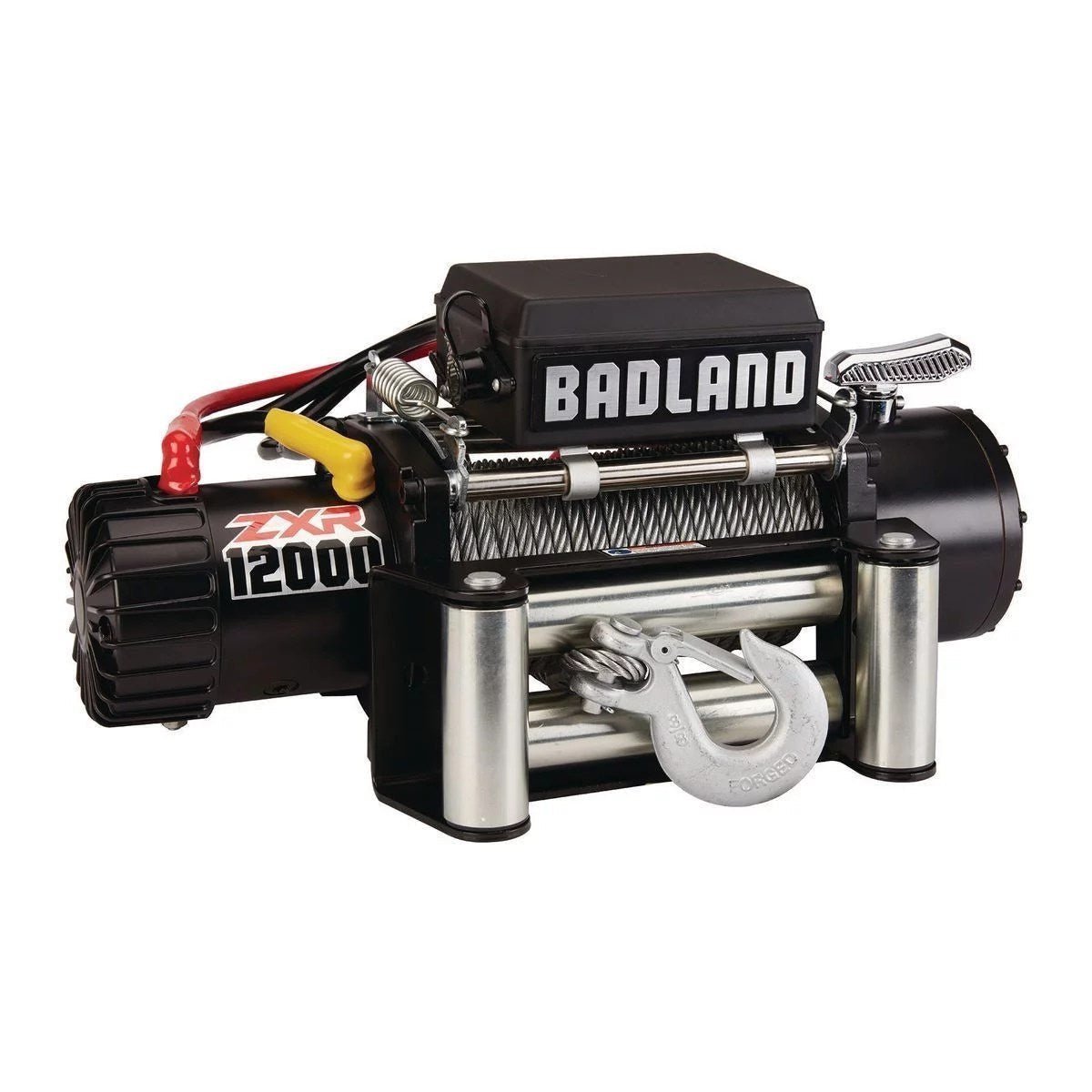

🚜 Badland ZXR 12,000 lb. Truck/SUV Winch with Wire Rope
The Badland ZXR 12,000 lb. is a powerful, budget-friendly electric winch designed for off-road vehicle recovery, hauling timber, or loading boats. It features a robust series-wound motor and a three-stage planetary gear system, offering reliable pulling power and fast line speeds for trucks and SUVs.
⚡ Performance & Pulling Power
This winch is engineered to handle demanding tasks in tough environments:
-
12,000 lb. Rated Line Pull: Provides massive single-line pulling capacity, though this strength decreases with each additional layer of rope on the drum.
-
6.0 HP Series-Wound Motor: Optimized for power delivery, this motor stays cooler during long, strenuous pulls compared to permanent magnet motors.
-
3-Stage Planetary Gear System: Delivers efficient power transfer and line speeds up to 26.5 feet per minute (no-load).
-
Fast Recovery: Recent upgrades have increased line speeds by up to 70% over previous generations for more efficient winching.
🛡️ Safety & Durability Features
Safety is prioritized through automatic systems and rugged construction:
-
Automatic Load-Holding Brake: Securely holds the full rated load in place to prevent slipping when winching operations stop.
-
Aircraft-Grade Wire Rope: Comes standard with 65 feet of 3/8-inch galvanized steel wire rope, known for its high abrasion and sunlight resistance.
-
IP66 Weather Resistance: Rated to withstand dust and powerful water jets, making it ideal for use in mud, snow, and rain.
-
Cable Tensioner: Features an integrated tensioner to help prevent the wire rope from tangling or bird-nesting on the drum.
-
Overload Protection: Includes an in-line circuit breaker to protect your vehicle’s electrical system from excessive strain.
🕹️ Control & Maneuverability
The ZXR is designed for easy installation and convenient remote operation:
-
12 ft. Handheld Remote: Allows the operator to stand at a safe distance while controlling the power-in and power-out functions.
-
Freespooling Clutch: A sliding ring gear allows for quick, manual line-out without using the motor.
-
Streamlined Control Box: Improved wire routing and a compact design ensure a better fit for vehicles with tight bumpers.
-
Roller Fairlead: Equipped with a 4-way roller fairlead to reduce rope wear and friction during angled pulls.
📊 Technical Specifications
🎁 What’s in the Box?
The winch package includes all necessary hardware for basic installation:
-
Badland ZXR 12,000 lb. Winch
-
65 ft. Aircraft-Grade Steel Wire Rope
-
Roller Fairlead & Clevis Hook with Safety Latch
-
12 ft. Ergonomic Handheld Remote Control
-
Mounting Hardware, Hook Strap, and Circuit Breaker
