Backyard beauty….Our DIY Brandon 12×20 wood storage shed kit will be the perfect addition to any backyard. The Brandon storage shed can comfortably store all your tools and gardening supplies.
Specifications:
Dimensions: 12′ W x 20′ L
Head Room: 6’4″ H
Door Opening: 5’4″ W
40 pounds per square foot snow loads
120 mph wind load tested
Base Shipping Weight: 1850 lbs.
15 year limited warranty!
Free FAST Shipping!

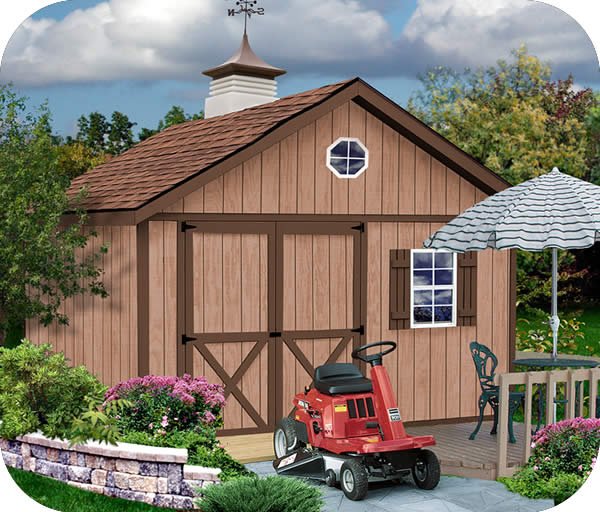

* shown with optional windows
Ready to assemble components insure a professional look when your barn raising is complete.
Fast & Easy – our components fit easily into place with no special tools or skills required!
Pre-cut roof trusses for fast and accurate assembly.
Pre-cut Wood Gussets.
Pre-cut wall framing.
Pre-cut exterior siding for an accurate fit.
Pre-cut roof sheathing.
Pre-cut trim for a perfect fit.
Pre-built doors.
Technical Support – 7 days.
Satisfaction Guaranteed.
All required hardware including door hinges, latch, hurricane straps for trusses, nails, glue for gussets and detailed instruction manual. Shingles and roof edge provided by owner / not included (use same style as home for professional look).
Order with confidence. We take great pride in our wood shed kits. Product quality and satisfaction is our number one goal. We use the highest grade of lumber from Sweden and Germany. These countries require a more stringent grading system than US standards insuring only the best lumber is used in your shed kit.
Primed wood siding, with vertical grooves, creates an attractive plank look.
Smart Panel, manufactured by Lousiana-Pacific, creates the visual beauty of real wood with the strength and durability of an engineered product.
The siding is made from wood strands, pressed into a resin saturated substrate, superior to plywood. A cedar texture is embossed into the substrate, free from knot holes and patches. Other features include:
Primed, ready for paint color of your choice. Latex acrylic paint recommended.
Treated with Composibor (from U.S. Borax) prevents fungal decay and insect damage.
Backed with a 50 year limited warranty.
Brandon 12′ Wide cross section.
Trusses:Our heavy duty trusses are engineered to handle severe weather snow loads of up to 40 pounds per square foot and 120 mile an hour wind loads. For extra strength metal hurricane truss hangers are also supplied to secure the trusses to the exterior walls. *Stamped engineered drawings are available upon request.
For extra strength metal hurricane truss hangers are supplied to secure trusses to the exterior walls.
View the inside of the 2×4 wood stud Brandon ShedBrandon 12×20 shed shown below with completed assembly and metal roof purchased locally / not included.Pre-cut wood assembly helps you get your new shed built fast and easy!
Optional Item
Optional single hung windows with screens & decorative wood shutters.
Single hung windows 18″ x 27″ aluminum windows provide light and ventilation. Lockable frames are durable and easy to operate. Screens limit birds and insects. Decorative wood shutters are pre-assembled.
Decorative octagonal gable windows illuminate interiors, beautify exteriors.
Optional Item
Floor not included; Add a wood floor kit to your shed to give it a finished look!Designed specifically for your new storage building. Adding a wood floor provides a dry storage area and raises the building above the ground protecting it from damaging moisture. Included in the deluxe floor kit are 4×4 treated runners, 2×4 treated joists (spaced 16″ on center), 3/4″ Plywood flooring and nails. The extra 4×4 runners add additional support to the floor joists and allows you to build your shed directly on the ground or grass. The 4×4’s raise the foundation above the ground for air flow that will eliminate moisture.The material is not pre-cut and will require the customer to make simple straight cuts. The flooring package will be delivered before your shed by a local lumber dealer. They will call to make delivery arrangements and someone must be there to receive and sign.
Optional Item
Optional Cupola offers an attractive addition to any building and provides ventilation.
Adds ventilation: 72 sq. in. air movement
Enhances building profile
Mix or match 7 base/top colors
Lightweight, impact resistant, high density polyethylene
22″ x 22″ base is 34″ high, plus 14″ weathervane
Handcrafted 14 gauge laser-cut steel weathervane
Choice of 3 weathervane designs
Resists weather: never rusts, rots or decays
5-year limited manufacturer’s warranty
