Overview & Creative Tools
Groove Circuit (rekordbox on Mac/Windows)Enables live remixing of drum elements. You can swap a track’s drum parts—even mid-play—with different loops, apply effects like rolls, fills, build-ups, and breakdowns, or extract (“capture”) drum parts to drop into another track. A free reggae-style drum loop pack (40 loops) is available for experimentation.
Stems FX (Serato DJ Pro)In Serato mode, the Groove Circuit transforms into Stems FX—letting you isolate stems like drums, bass, vocals, or melody, and apply effects such as Roll, Trans, Echo Out, and Delay, achieving deeply creative track manipulation.
2. Design & Layout
Club-Style Gear FeelInspired by flagship equipment, it includes large jog wheels (ideal for scratching), 8 performance pads per deck positioned above the jogs (like those on CDJ‑3000 players), and Beat FX knobs borrowed from DJM‑A9 mixers.
Smart Rotary SelectorA multifunctional knob (tilt, rotate, push) that enables fast navigation through track libraries. Left/right tilts enable browser navigation, while up/down tilts navigate playlists.
Discover FeatureA single button press to trigger Track Suggestions in rekordbox, helping rediscover old favorites or find new tracks quickly.
3. Device and Software Support
Wide CompatibilityFully compatible with rekordbox (Mac, Windows, iOS, Android), Serato DJ Pro, and Algoriddim’s djay Pro suite (on Mac/Windows/iOS), including support for Neural Mix and streaming via Apple Music in djay.
Mobile UseWhen using rekordbox mobile (iOS/Android), only channels 1 & 2 are accessible. Djay requires a paid subscription. Bluetooth is not supported.
USB-C Audio OutputAllows audio direct output from iPhone/iPad via USB‑C, enabling DJing without external speakers when using mobile devices.
4. Audio, Connectivity & Build
Professional Inputs & OutputsIncludes a built-in sound card, dual USB‑C ports (host + power), mic input (¼″ TRS), master outputs (¼″ TRS + RCA), booth output (RCA), and dual headphone jacks (¼″ & 3.5 mm).
Audio QualityOffers 20 Hz–20 kHz frequency response, 104 dB S/N ratio, and 0.003% total harmonic distortion via USB.
Power OptionsCan be powered via USB bus (5 V, 1.5 A) or an external adapter (9 V, 3 A). External power is needed when using mobile devices.
Class-Compliant & Firmware UpdatesPlug-and-play with computers—no driver needed. Firmware updates are managed through AlphaTheta Care.
5. Specifications & Physical Attributes
Dimensions & WeightApproximately 28.0″ × 14.8″ × 3.0″ (711.4 × 375.9 × 75.7 mm), weighing around 10.2 lbs (4.6 kg).
Performance Controls
4 internal channels (mixer) with 4/deck mode switching
206 mm jog wheels
8 hot cues per deck
Samplers: rekordbox (16 slots × 4 banks), Serato (8 slots × 4 banks)

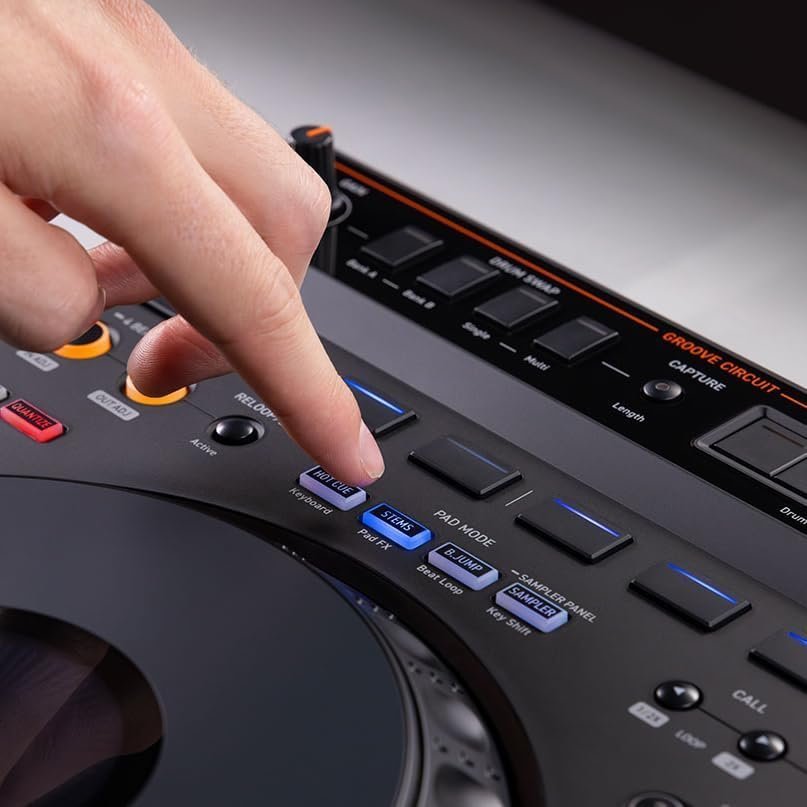

Pad modes:
rekordbox: Hot Cue, Stems, Beat Jump, Sampler, Keyboard, Pad FX, Beat Loop, Key Shift
Serato: Hot Cue, Stems, Beat Jump, Sampler, Pitch Play, Pad FX, Auto Loop, Key Shift
Accessories IncludedDepending on the region, the package includes a USB‑C cable, overlay sheet for Stems FX, Quick Start guide, and warranty documentation.
6. Design & User Experience
Sleek & Ergonomic DesignThe controller’s matte black finish, minimalistic interface, and thoughtful layout (with Groove Circuit area elevated above pads) minimize accidental button contact and ease navigation.
Professional Layout FeelSeamlessly mirrors CDJ‑3000 and DJM‑A9 equipment, making it familiar and comfortable for DJs used to club systems.
7. Summary Table
Feature
Description
Creative Tools
Groove Circuit (rekordbox) + Stems FX (Serato)
Layout
Jog wheels, performance pads, Beat FX—club style
Navigation Tools
Smart Rotary Selector + Discover button
Compatibility
rekordbox (desktop/mobile), Serato DJ Pro, djay Pro
Connectivity
USB‑C, mic input, master/booth outputs, dual headphone jacks
Audio Specs
20 Hz–20 kHz, 104 dB SNR, 0.003% THD
Power Options
USB‑bus or 9 V adapter
Physical Specs
~28 × 14.8 × 3 in, ~10.2 lbs
Extras
Overlay, cable, guide, firmware support, warranty
