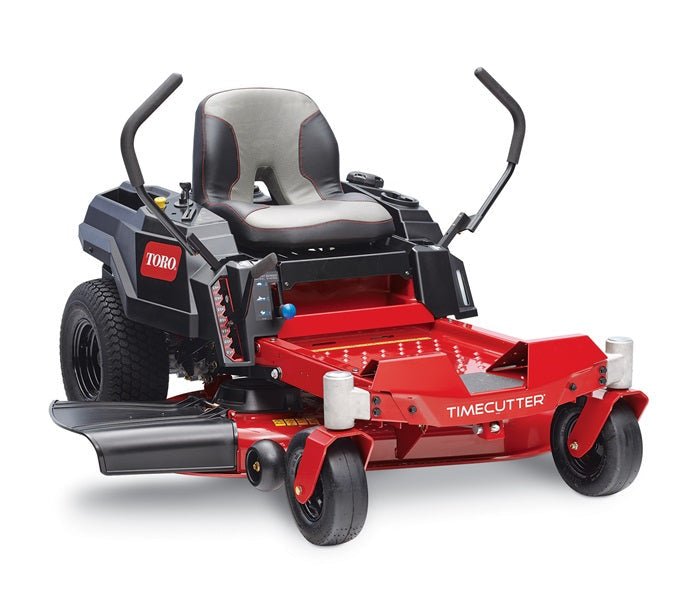

Toro 77401 TIMECUTTER Z-Turn Mower 22hp Briggs & Stratton V-Twin Engine w/42″ Stamped Deck
Tackle everything on your “Honey-Do” list and still make it in time for all the summer fun with Toro’s 42″ TimeCutter. The mower’s compact design makes for easy storage, and features like a step-through front end, built-in cupholder and storage cubby give you the ultimate in convenience. It’s also a snap to control with Toro’s Smart Speed® Technology, which adjusts to your pace for easy maneuverability. Pinpoint quality cuts and zero-turn mowing are just two pro commercial contractor features that put Toro’s cutting-edge technology and world-class craftmanship into the hands of homeowners. And you can rest easy knowing Toro stands behind its mowers with a 3-year unlimited hour residential warranty, plus 3-year, 300-hour commercial engine warranty. And as a Toro owner, you’ll have access to nearly 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.
- Cup Holder – Stay cool and hydrated with a built-in cup holder.
- Wide Rear Tires – Wide tires to reduce rutting in soft ground.
- Pro DNA – Commercial DNA courses through these machines’ veins with the same technology professionals depend on. Get a beautiful, professional-looking lawn.
- Step-Through Front End – Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.
- Toolless Oil Change – Spend less time maintaining your mower with toolless oil change and filter.
- Handcrafted Seat – Ride in style with a handcrafted seat that provides the ultimate in padding and back support.
- Storage Cubby – Now there’s a convenient and safe space in your under-seat cubby to store important items.
- Pick Your Pace – Take control over your mowing speed, while never sacrificing blade tip speed with Smart Speed® Technology.
- Download the MyToro App from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more.
Specifications
| Blade Tip Speed | 17,810 ft/min / 5,428 m/min |
|---|---|
| Box Dimensions | 82 in. x 49 in. x 35 in. / 208.3 cm x 124.5 cm x 88.9 cm |
| CARB Compliant | Not CARB Compliant |
| Caster Tires | 11 in. x 4 in. (27.9 cm x 10.2 cm) |
| Controls | Dual Wrap Around Levers |
| Cup Holder | Standard |
| Cutting Width | 42 in. / 107 cm |
| Deck Design | 42″ Stamped Deck |
| Deck Material | 13 Gauge Steel |
| Discharge Chute | Side |
| Drive Tires | 18 in. x 7.5 in. (45.7 cm x 19 cm) |
| Drive Type | Rear-Wheel Drive |
| Engine | 22 hp Briggs & Stratton |
| Engine Brand | Briggs and Stratton |
| Engine Horsepower | 22.0 hp |
| Foot Operated Height of Cut | Optional |
| Forward Ground/Transport Speed | Up to 7.0 mph / 11.2 kph |
| Fuel Capacity | 3 gal. / 11.4 L / 12 Qt. |
| Fuel Type | Gasoline |
| Height of Cut | 1.5 – 4.5 in. / 3.8 – 11.4 cm |
| Hitch Bracket | Standard |
| Hour Meter | Optional |
| Included in the Box | 1 Battery, Engine Oil |
| Number of Blades | 2 |
| Product Features | Cup Holder, Electric Start, Foot Operated Height of Cut, Hitch Bracket, Low Back Seat, Smart Speed, Tool-less Oil Change |
| Product Use | Residential |
| Recommended Oil Type | 10W-30 |
| Seat | 16″ Handcrafted |
| Start Type | Electric |
| Steering Controls | Dual Wrap Around Levers |
| Steering Dampeners | Pro-Control Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | 11 in. x 4 in. (27.9 cm x 10.2 cm) Front, 18 in. x 7.5 in. (45.7 cm x 19 cm) Rear |
| Tow Speed | Up to 4.0 mph / 6.4 kph |
| Transmission | Dual Hydrostatic HG-ZT2100 |
| Trim Speed | Up to 5.5 mph / 8.8 kph |
| Washout Port | Standard |
| Wheel Height | Front 8 in. / 20.3 cm; Rear 10 in. / 25.4 cm |
| Yard Size | Up to 2 acres |
| Attachments and Accessories (Not Included) For 75748 TimeCutter 4225 Riding Mower |
|
| Product Name | Model/Part |
| Twin Bagger, Timecutter 42in Stamped | 79410 |
| 42in Recycler Kit | 137-7042 |
| Bagging Enhancement Kit | 137-7048 |
| Striping Kit, 42in and Riding Mowers | 140-5198 |
| Hourmeter Kit | 116-5461 |
| Front Weight Kit | 140-2050 |
| Assist Bar Kit | 140-2052 |
| ROPS Kit | 79485 |
| Slope Sensor Kit | 79486 |
| LED Light Kit | 140-2056 |
| Deluxe Seat Kit | 140-2057 |
| Armrest Kit | 140-2058 |
| Deck Footlift Assist Kit | 140-2059 |
| Floormat Kit | 140-2060 |
| Jack Mount Kit | 140-2711 |
| Jack Kit | 127-6666 |
| Replacement Blade Kit | 137-1999-03P |
| Storage Cover | 490-7516 |
| Seat Cover W/O Arm Rest – TC 18in | 117-0096 |
| 4-Cycle Fuel, Snow And Lawn 32oz Can | 131-3823 |
| Heavy Duty Air Cleaner Kit | 135-6195 |
| Fuel Stabilizer 05 oz | 130-2393 |
| Toro Premium Fuel Treatment 12 Oz Bottle | 131-6572 |
| 10w30 4-Cycle Engine Oil (32oz Bottle) | 38280 |
| Toro 4-Cycle SAE 30 Oil (32oz Bottle) | 38903 |
| Mower Deck Drive Belt, TimeCutter SS Riding Mower with 42-inch Mowing Deck |
